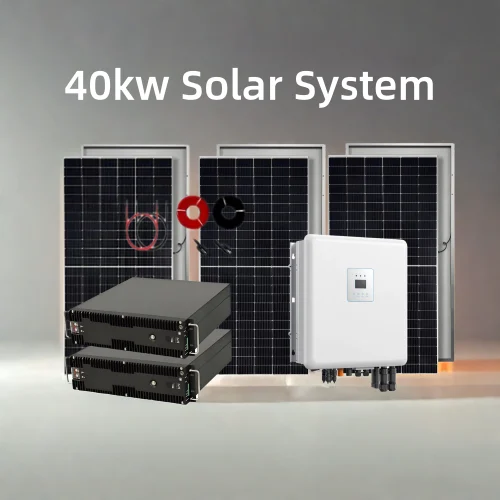

This 40 kW off-grid solar power system is a reliable and self-sufficient energy system designed to meet the electrical requirements of large residential buildings, commercial enterprises, or remote areas without access to the main power grid. The system exploits solar energy to provide a sustainable energy source with increased reliability; this reduces dependence on fossil fuels and electricity costs.
| Component | Description | Quantity |
|---|---|---|
| Solar Panels | Photovoltaic modules that convert sunlight into direct current (DC) electricity. | 128 pcs |
| Inverter | Converts DC electricity from the solar panels into alternating current (AC) suitable for household appliances. | 1 set |
| Battery Bank | Stores excess energy generated during the day for use during nighttime or cloudy periods. | 64 units |
| Charge Controller | Regulates the voltage and current coming from the solar panels to prevent overcharging of the batteries. | 1 unit |
| Mounting Structure | Supports and positions the solar panels at optimal angles for maximum sunlight exposure. | 1 set |
| Cabling and Connectors | Facilitates electrical connections between components, ensuring safe and efficient power transmission. | As required |
| Component | Specification |
|---|---|
| Solar Panels | Polycrystalline 320W panels, 128 units, total capacity 40.96kW |
| Inverter | 40kW off-grid pure sine wave inverter, 1 unit |
| Battery Bank | 12V 250Ah lithium iron phosphate (LiFePO4) batteries, 64 units, total capacity 192kWh |
| Charge Controller | 384V 100A MPPT charge controller, 1 unit |
| Mounting Structure | Adjustable for flat ground and roof installations, 1 set |
| Cabling and Connectors | UV-resistant, weatherproof cables and MC4 connectors, as required |
The daily energy production of a 40kW off-grid solar system varies based on geographic location and local solar irradiance. Below is an estimated daily energy output for selected regions:
| Region | Solar Irradiance (kWh/m²/day) | Estimated Daily Energy Production (kWh) |
|---|---|---|
| Nigeria | 5.5 | 220 |
| Pakistan | 5.0 | 200 |
| South Africa | 5.5 | 220 |
| Iran | 5.0 | 200 |
Note: These values are approximate and can vary based on specific location, weather conditions, and seasonal variations.
A 40kW off-grid solar system can power a variety of household and commercial appliances. Below is a list of common appliances along with their approximate energy consumption:
| Appliance | Power Consumption (W) | Estimated Daily Usage (hours) | Daily Energy Consumption (kWh) |
|---|---|---|---|
| LED Lighting | 10 per bulb | 5 | 0.05 per bulb |
| Refrigerator | 150 | 24 | 3.6 |
| Air Conditioner | 2000 | 8 | 16 |
| Washing Machine | 500 | 1 | 0.5 |
| Dishwasher | 1200 | 1 | 1.2 |
| Television | 100 | 5 | 0.5 |
| Microwave Oven | 1000 | 1 | 1 |
| Electric Oven | 3000 | 2 | 6 |
| Water Pump | 1500 | 2 | 3 |
| Computer | 200 | 8 | 1.6 |
Note: Actual energy consumption can vary based on appliance efficiency and usage patterns.
The return on investment (ROI) for a 40kW off-grid solar system depends on various factors, including initial installation costs, local electricity rates, and system performance. Below is a simplified ROI analysis:
| Parameter | Value |
|---|---|
| Initial Investment | $100,000 |
| Annual Energy Production | 80,000 kWh |
| Average Electricity Rate | $0.10 per kWh |
| Annual Savings | $8,000 |
| Payback Period | 12.5 years |
| Estimated System Lifespan | 25 years |
| Total Savings Over Lifespan | $200,000 |
| Net Profit | $100,000 |
Note: The payback period is an estimate and can vary based on local electricity rates, system performance, and available incentives.
