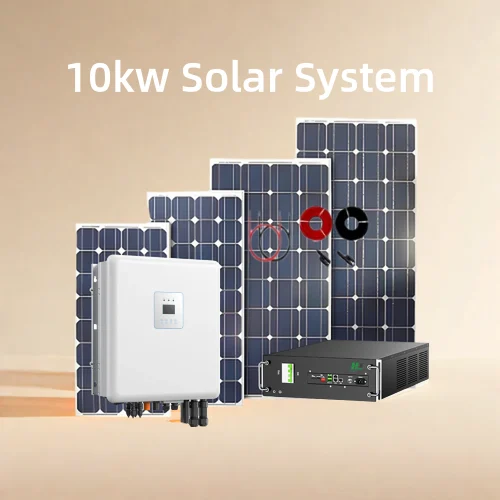

10kW Off-Grid Solar System Kit | Energy Independence for Homes

Products Categories

Choose Your Tagss

Break free from grid dependency with a 10kW Off-Grid Solar System – engineered for high-energy independence in remote or unstable power regions. Unlike smaller systems, this robust setup delivers reliable, scalable energy for homes, farms, or commercial operations, even in extreme climates.

Get a Quote Now

Table of Contents

Advantages of 10kw Off-Grid Solar System Components

Independence of Energy Supply: Functioning independently from grid systems, it makes sure that the extreme remoteness is compensated with reliable power supply.
Renewability: It makes use of renewable sun energy, thereby reducing the carbon footprints and promoting Environmental Responsibility.
Epitomizes Savings: The person is able to reduce the consumption of electric meters because of building free power from sunlight.
Scalability: It makes it easily expandable by introducing more panels or batteries as the requirements for energy increases.

Application Scenarios Meeting User Needs

Remote Dwelling: Best suited for houses situated within areas that are not reachable by the electrical grid.
Vacation Lodges: Offers assurance of powering houses that receive seasonal or transient visits.
Small Commercial Operations: Empower companies with off grid capability and reduce reliance on diesel generator usage.
Emergency Backup: Serves as an alternative source during outages at grid lines, ensuring essential service continuities rather attached in-run pipes.

Components

The 10kW off-grid solar system comprises several key components:

Component	Description
Solar Panels	High-efficiency photovoltaic panels, typically 550W each, totaling 18 panels.
Inverters	Two 5kW off-grid inverters to convert DC to AC power.
Batteries	Four 5.12kWh LiFePO4 batteries for energy storage.
Mounting System	Aluminum mounting brackets for roof or ground installation.
Cabling	PV cables (4mm² and 10mm²) and connectors (MC4) for electrical connections.

Detailed Data Sheet of 10kw Off-grid Solar System for User Reference

Specification	Details
System Capacity	10kW
Solar Panel Specs	550W each, 18 panels, total 9.9kW
Inverter Specs	Two 5kW off-grid inverters
Battery Specs	Four 5.12kWh LiFePO4 batteries, total 20.48kWh
Mounting Type	Roof or ground-mounted, aluminum brackets
Cabling	4mm² and 10mm² PV cables, MC4 connectors
Operating Voltage	48V DC input, 230V AC output
Warranty	25 years for panels, 10 years for batteries and inverters

Appliances Powered by the 10kw Solar System

A 10kW off-grid solar system can power various household appliances, including:

Appliance	Power Consumption (W)	Estimated Daily Usage (hours)	Daily Energy Consumption (Wh)
Refrigerator	150	24	3,600
LED Lighting	10	5	50
Laptop	50	4	200
Washing Machine	500	1	500
Microwave Oven	1,000	0.5	500
Air Conditioner	2,000	5	10,000
Electric Heater	1,500	3	4,500
